Liang Zhang   Alan Mislove

Northeastern University

Online social networks

  • OSNs are popular for content sharing
    • Facebook: 300M photos uploaded per day
  • Sharing is "FREE" for users
    • User does NOT pay for content sharing
  • Who funds the service? -- Advertising
    • Monetizes your content for ads
    • But, we have privacy settings on Facebook!?

Privacy in OSNs

  • Privacy control on OSNs
    • Control information flows within the site
    • CANNOT keep data private from the provider
  • Leads to unintended consequences
    • Easy in, (almost) no way out
      • e.g., hard to migrate data from Facebook to Google+
    • Privacy leakage
      • e.g., Facebook data bug leaked 6 million users' info
    • Big brother is watching YOU...
      • e.g., NSA, GCHQ
  • Can we protect user privacy from the provider?

Alternative designs

  • Encrypt data uploaded to the provider (e.g., Privly, NOYB)
    • Require additional software installed, low accessibility
    • Transfer cost to OSN providers, not sustainable
  • User-hosted servers for private data (e.g., Persona, Vis-à-Vis)
    • Expensive for user to host server
  • Decentralized system (e.g., PeerSoN, Diaspora)
    • Reliability difficult to achieve

  • Our insight: Leverage cloud computing to host user content
    • Users store encrypted data on cloud provider of choice
    • But, how much would it cost?

Using the Cloud

Storage
Bandwidth
Requests
Computation
Storage $0.095/GB/month for storage
Bandwidth $0.12/GB for outgoing bandwidth
Requests $0.004 per 10,000 GET requests
Computation $14.40 per month for a t1.micro instance
* Prices are based on Amazon cloud platform.
Storage $0.095/GB/month for storage
Bandwidth $0.12/GB for outgoing bandwidth
Requests $0.004 per 10,000 GET requests
Computation $14.40 per month for a t1.micro instance
  • If we ignore computation,
    • Cost for 99% users is less than $1
    • Using real world data (Facebook, Twitter, Flickr)
    • More details in paper

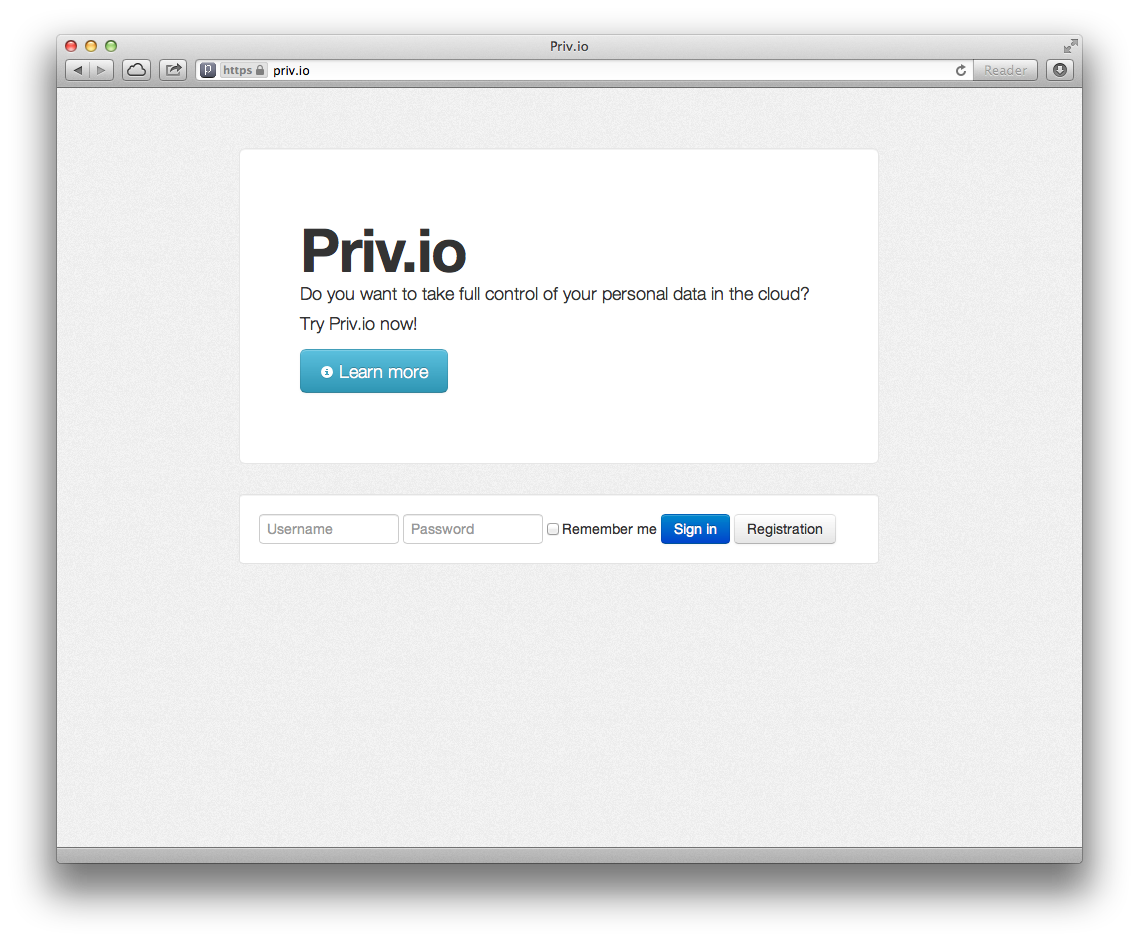

Priv.io

  • Goal: low cost platform for web services with strong user privacy
  • Key insights:
    • User provides storage, bandwidth via cloud providers
      • Protects privacy, provides control
    • Use users' web browsers for computation
      • Provides cost-efficient computation

  • Result: Priv.io, a confederated service
    • Each user retains control over his/her own data
    • Confederated means users are free to leave

Outline

  • Motivation
  • Priv.io design
  • Security, privacy and limitation
  • Evaluation

Sharing on Facebook

Sharing on Priv.io

Priv.io overview

  • Social platform for building web apps
    • e.g., Google Doc, Facebook, Twitter

  • Architecture
    • Servers
      • Server side support
      • User-contracted cloud providers
    • Priv.io Core
      • Kernel of the system
    • Priv.io Applications
      • User facing functionality

Servers

  • Priv.io server
    • Bootstraps Priv.io
      • Serves static content
    • Uses DNS to map cloud providers
      • e.g., liang.priv.io =>
        liang.priv.io.s3.amazonaws.com
      • Hide users traces
  • Cloud providers
    • Assumption: Accessible with REST API
    • Storage
      • Two credentials: owner read/write, friends read
      • Providers today: Amazon, Google, Azure, Dropbox

Priv.io core

  • Run applications
    • Ensures security, privacy
  • Resource management
    • Access user provided resources
    • Easy encryption/decryption (ABE, AES)
  • Content sharing
    • Create, manage friendship
    • Access own, friends storage
  • Expose services to applications via API

Priv.io application model

Priv.io application

  • Implemented in HTML5
    • Runs in users' browsers
    • Each app gets its own iframe
  • Various applications
    • Less social interaction: Google doc
    • More social interaction: Facebook newsfeed
  • Hosting applications
    • Applications are served on Priv.io server
    • Access via subdomain, e.g., newsfeed.app.priv.io

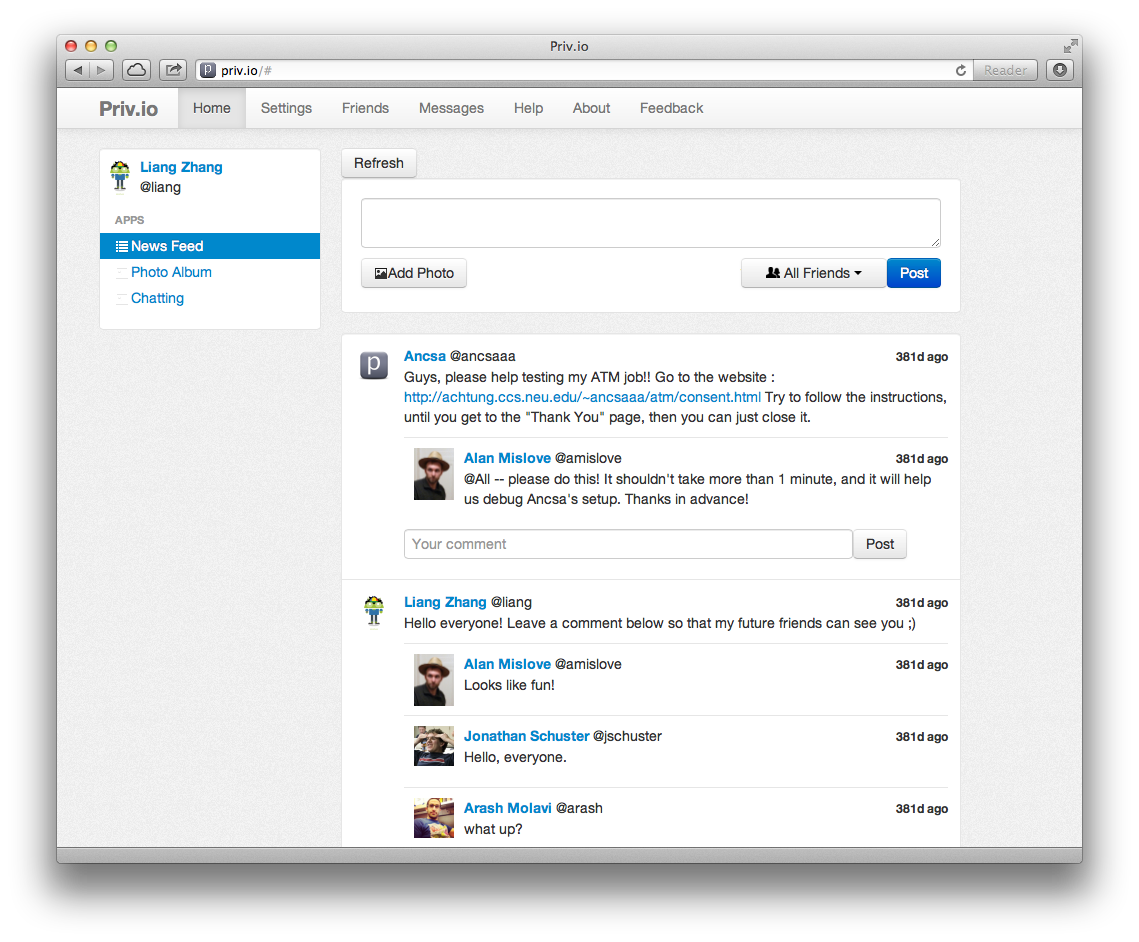

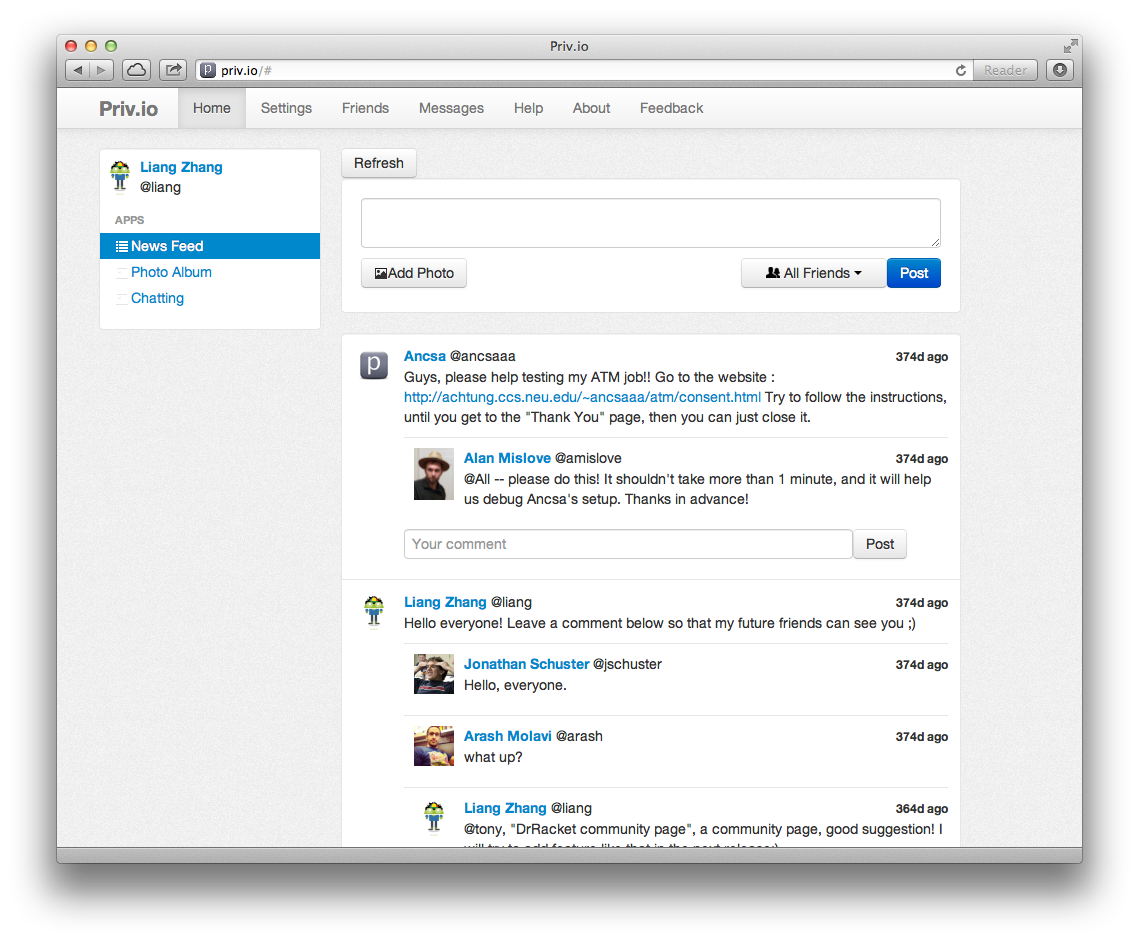

Application: Newsfeed

Outline

  • Motivation
  • Priv.io design
  • Security, privacy and limitation
  • Evaluation

Security: can app bypass API?

Privacy: leak user data?

Limitations

  • No global view
    • e.g., no global search
    • Some can be partially replicated with local view
      • e.g., friend suggestion
  • Computation only in browser
    • Don't have background processes
    • Push notification
    • Future research

Outline

  • Motivation
  • Priv.io design
  • Security, privacy and limitation
  • Evaluation

Evaluation overview

  • Prototype system
    • Supports Amazon SQS and S3
    • Runs latest common web browsers (desktop and mobile)
    • 5,931 lines of JavaScript

  • How much overhead from encryption?
    • Microbenchmarks on running time
    • AES: 100K object: under 43ms (desktop), 327ms (mobile)
    • Provide decent performance
    • ABE more expensive, but much less frequent

How's user-perceived performance?


  • Load 15 Newsfeed items
  • Feed loading time:
      below 515ms (desktop), 5.1s (mobile)
  • Comparable to today's OSN services on desktop

How does Priv.io work in practice?

  • Deploy within our department for two months
    • 28 graduate students and professors
    • 88 friendships, an average 3.82 friends per user
    • Post 221 items
  • It works on today's browsers (desktop and mobile)

Summary

  • Confederated platform for building Web-based services
  • Leverage:
    • Cloud providers for storage, bandwidth, and messaging
    • User’s Web browser for computation
  • In Priv.io, users
    • Retain control of their own data
    • Keep data privately from the service provider
    • Enjoy a highly reliable and available service
  • Result:
    • Work with today's web browsers
    • Newsfeed: Facebook alike application

OSN services cost analysis

  • Estimate on real world dataset
    • Facebook: 0.6M profiles
    • Twitter: 1.7B tweets issued by 54.9B users
    • Flickr: 2.5M users sharing 260.3M photos
  • For storage and bandwidth
      cost for 99% users is less than $1

Price in the cloud

  • Cloud resources for OSN services
    • Storage and bandwidth costs are low (e.g., Amazon S3)
      • $0.095/GB/month for storage
      • $0.12/GB for outgoing bandwidth
      • $0.004 per 10,000 GET requests
    • Computation is expensive (e.g., Amazon EC2)
      • $14.40 per month for a t1.micro instance
  • For storage and bandwidth,
    • Cost for 99% users is less than $1
    • Base on real world data (Facebook, Twitter and Flickr)

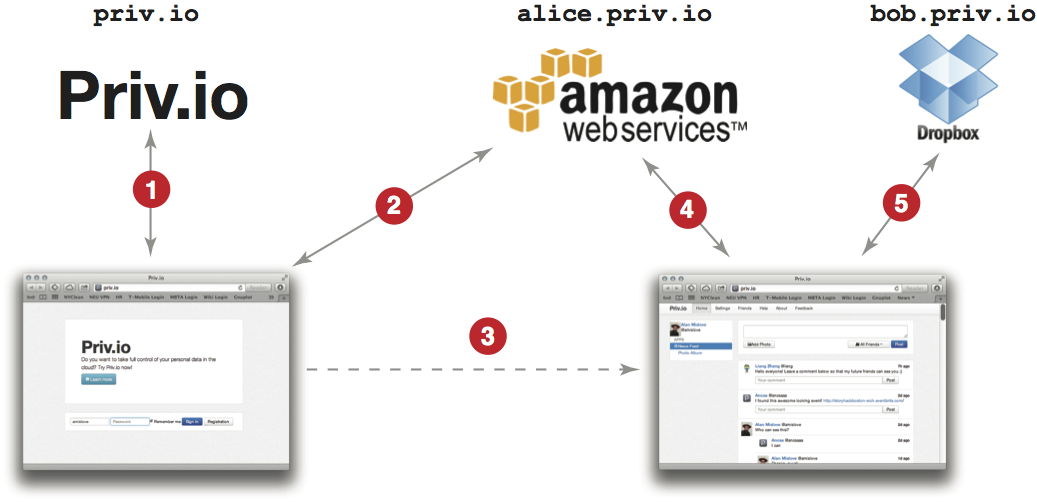

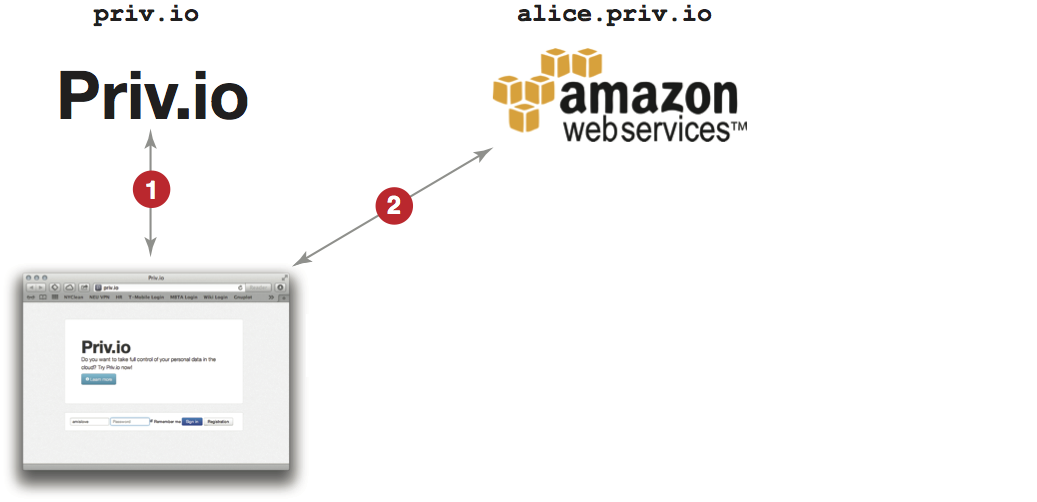

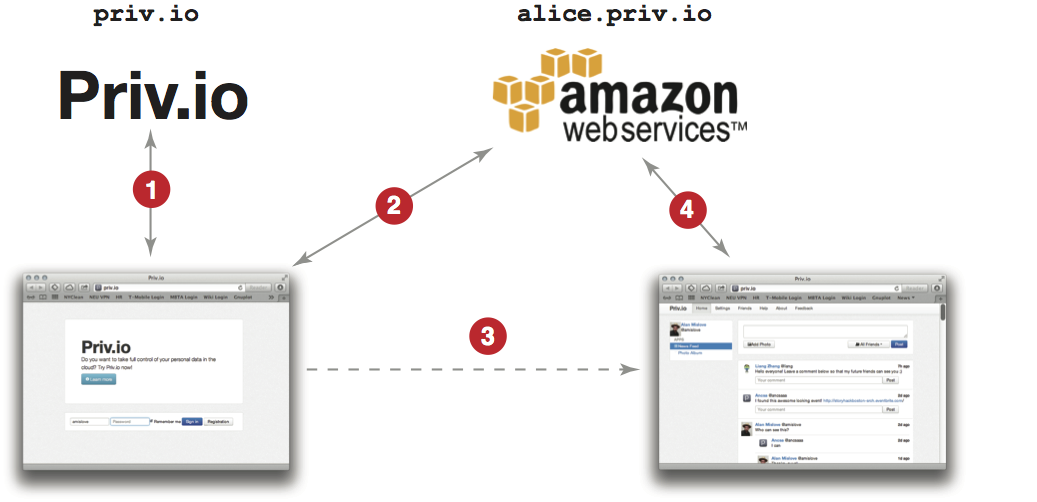

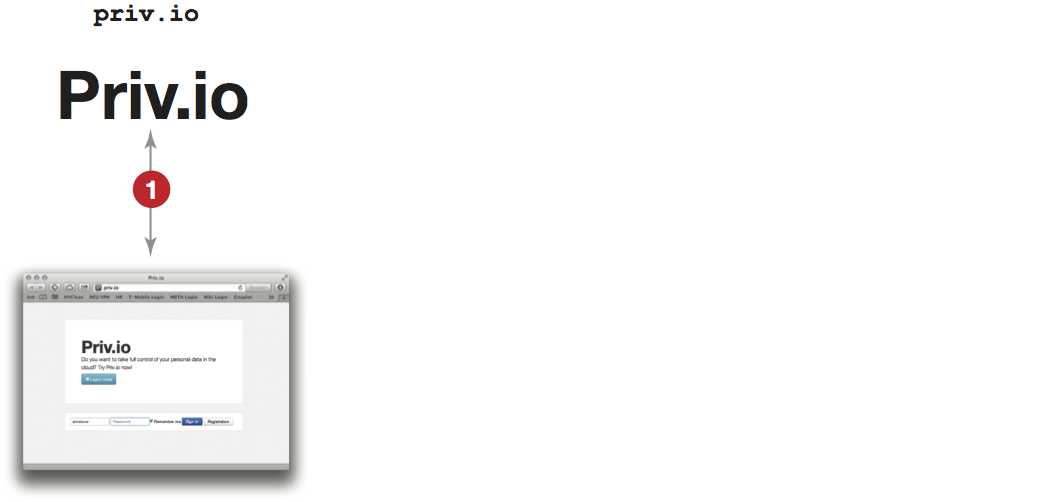

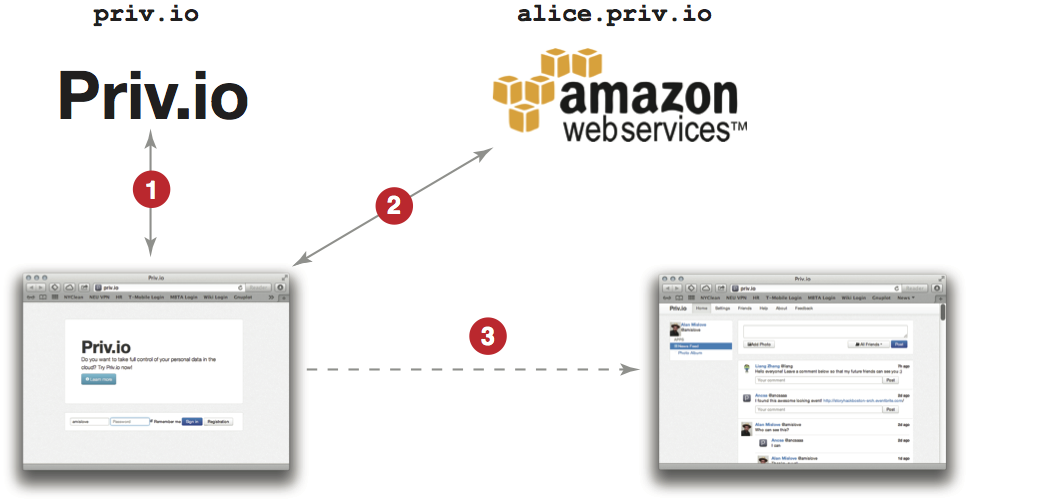

Priv.io workflow

Application security and privacy

  • Can we restrict applications to only using the Priv.io API?
    • Run in an iframe
    • Call API via postMessage
      • Only allow string message, prevent malicious object
      • Audit API call
      • Rewrite storage call path to app's sandbox space
  • Can we prevent applications from leaking user data?
    • Data might leak via loading DOM objects
    • Use Content Security Policy (CSP)
      • Restrict content loading only from app domain
        • e.g., newsfeed.app.priv.io

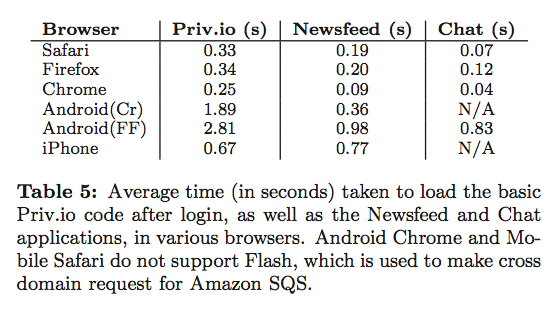

Loading times

Priv.io overview

  • Confederated architecture for Web-based services
    • Leverage user provided resources
    • Do computation in users' browsers
  • Services are implemented as application
    • Work like today's web sites
    • e.g., Facebook News Feed
  • Key challenge: browsers are not native program
    • Cross site resource access restriction
    • Content sharing with other users
    • Sandbox 3rd party code

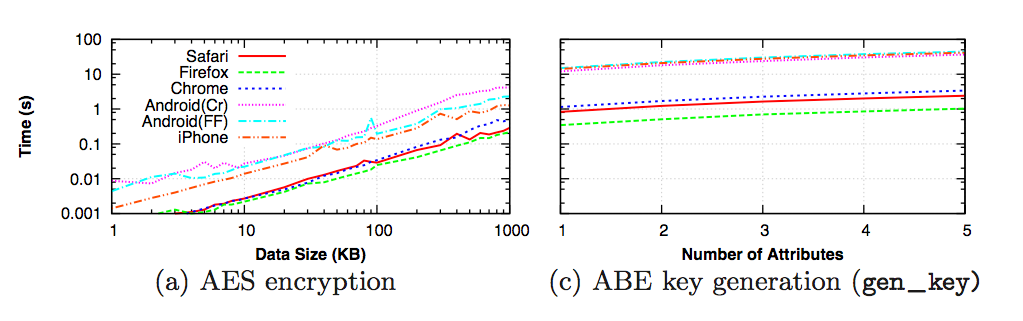

How much overhead from encryption?

  • AES
    • 100K object: under 43 ms(desktop), 327 ms(mobile)
  • ABE
    • Depend on number of attributes
  • Provide decent performance

Microbenchmark: storage

  • AES encryption
    • 145 bytes fixed overhead (init vector, etc.)
  • ABE encryption
    • 345 bytes fixed overhead
    • 370 bytes per policy
    • ABE public keys are 1184 bytes
